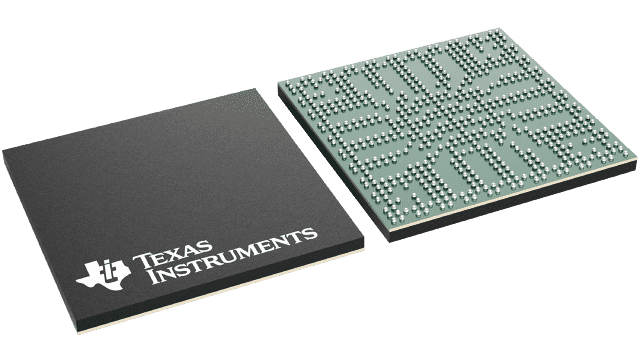

DM385AAARD21F Texas Instruments - Yeehing Electronics

DaVinci Digital Media Processor

Pricing (USD)

Quantity	Unit Price
1 — 99	49.526
100 — 249	44.023
250 — 999	36.19
1,000 +	22.66

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	FCBGA-609
Series	DM385
Product	DSPs
Core	ARM Cortex A8
Maximum Clock Frequency	1 GHz
L1 Cache Instruction Memory	32 kB
L1 Cache Data Memory	32 kB
Data RAM Size	64 kB
Operating Supply Voltage	830 mV to 1.35 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 95 C
Packaging	Tray
Brand	Texas Instruments
Data ROM Size	48 kB
Interface Type	I2C, McASP, MMC/SD/SDIO, PCI/PCIe, SPI, UART, USB
Number of I/Os	125 I/O
Data Bus Width	32 bit
I/O Voltage	1.35 V, 1.5 V, 1.8 V, 3.3 V
Instruction Type	Floating Point
L2 Cache Instruction / Data Memory	256 kB
Moisture Sensitive	Yes
Number of Cores	1 Core
Number of Timers/Counters	8 x 32 bit
Processor Series	DaVinci
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	90
Subcategory	Embedded Processors & Controllers
Supply Voltage - Max	1.35 V
Supply Voltage - Min	830 mV
Watchdog Timers	Watchdog Timer

For more information, please refer to datasheet

Documents

DM385AAARD21F Datasheet

More Information

DM385 and DM388 DaVinci Digital Media Processors are a highly integrated, cost-effective, low-power, programmable platform that leverages TI’s DaVinci processor technology to meet the processing needs of HD Video Conferencing - Skype endpoints, IP Netcam, Digital Signage, Media Players and Adapters, Mobile Medical Imaging, Network Projectors, Home Audio and Video Equipment, and similar devices in SD, HD, and 4K x 2K resolutions. The Programmable High-Definition Video Image Processor of the device supports 1080p60 of real time H.264BP/MP/HP video encode or decode. The included best-in-class H.264 encoder provides high-quality video encode for the lowest possible bit rate under all conditions, reducing valuable storage space to a minimum. In addition, the device also supports other video codecs such as MJPEG, MPEG-2, and MPEG-4. The device provides a full set of video preprocessing and postprocessing functions to ensure the best video quality. The low power consumption and high performance of the device makes it particularly suitable for portable and automotive applications. The DM388 is uniquely capable of running the Fourth-Generation Motion-Compensated Noise Filtering technology of TI.
