DM388AAARD21FP Texas Instruments - Yeehing Electronics

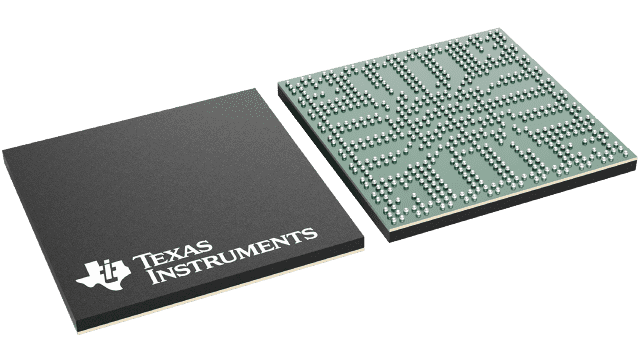

DaVinci Digital Media Processor

Pricing (USD)

Quantity	Unit Price
1 — 99	51.361
100 — 249	45.654
250 — 999	37.53
1,000 +	23.50

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	FCBGA-609
Series	DM388
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 95 C
Height	1.32 mm
Length	16 mm
Width	16 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	90
Subcategory	Embedded Processors & Controllers

For more information, please refer to datasheet

Documents

DM388AAARD21FP Datasheet

More Information

DM385 and DM388 DaVinci Digital Media Processors are a highly integrated, cost-effective, low-power, programmable platform that leverages TI’s DaVinci processor technology to meet the processing needs of HD Video Conferencing - Skype endpoints, IP Netcam, Digital Signage, Media Players and Adapters, Mobile Medical Imaging, Network Projectors, Home Audio and Video Equipment, and similar devices in SD, HD, and 4K x 2K resolutions. The Programmable High-Definition Video Image Processor of the device supports 1080p60 of real time H.264BP/MP/HP video encode or decode. The included best-in-class H.264 encoder provides high-quality video encode for the lowest possible bit rate under all conditions, reducing valuable storage space to a minimum. In addition, the device also supports other video codecs such as MJPEG, MPEG-2, and MPEG-4. The device provides a full set of video preprocessing and postprocessing functions to ensure the best video quality. The low power consumption and high performance of the device makes it particularly suitable for portable and automotive applications. The DM388 is uniquely capable of running the Fourth-Generation Motion-Compensated Noise Filtering technology of TI.
