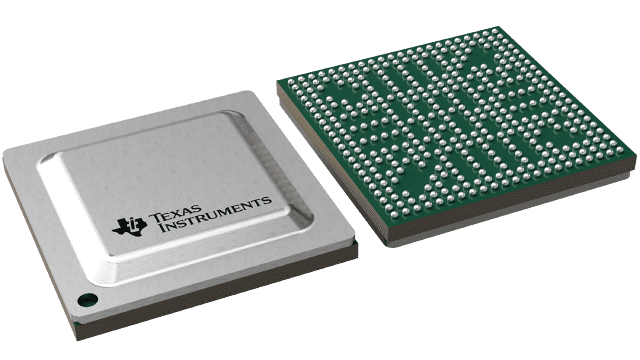

DM505MRBABF Texas Instruments - Yeehing Electronics

SoC for vision analytics 15mm package

Pricing (USD)

Quantity	Unit Price
1 — 99	36.696
100 — 249	32.618
250 — 999	26.814
1,000 +	16.79

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	FCBGA-367
Series	DM505
Product	DSPs
Core	ARM Cortex M4, C66x
Maximum Clock Frequency	745 MHz
L1 Cache Instruction Memory	32 kB
L1 Cache Data Memory	32 kB
Program Memory Size	512 kB
Data RAM Size	512 kB
Operating Supply Voltage	1.02 V to 1.11 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Tray
Brand	Texas Instruments
Data ROM Size	32 kB
Interface Type	CAN, I2C, SDIO, SPI, UART
Number of I/Os	126 I/O
Data Bus Width	32 bit
Instruction Type	Fixed/Floating Point
L2 Cache Instruction / Data Memory	256 kB
Moisture Sensitive	Yes
Number of Cores	2 Core
Number of Timers/Counters	8 Timer
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	90
Subcategory	Embedded Processors & Controllers
Supply Voltage - Max	1.11 V
Supply Voltage - Min	1.02 V
Watchdog Timers	No Watchdog Timer
Unit Weight	0.063860 oz

For more information, please refer to datasheet

Documents

DM505MRBABF Datasheet

More Information

The DM505 is a highly optimized device for Vision Analytics and Machine Vision processing in Industrial products such as drones, robots, forklifts, railroad and agriculture equipment. The Processor enables sophisticated embedded vision processing integrating an optimal mix of real time performance, low power, small form factor and camera processing for systems to interact in more intelligent, useful ways with the physical world and the people in it.
