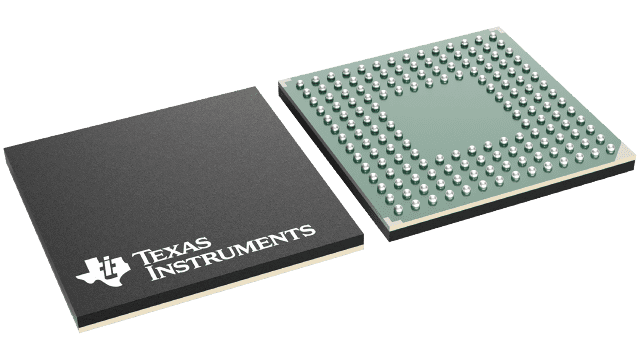

DP83815DUJB/NOPB Texas Instruments - Yeehing Electronics
10/100 Mbps integrated PCI Ethernet media access controller & physical layer (MacPhyter)
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 18.487 |
100 — 249 | 16.149 |
250 — 999 | 12.451 |
1,000 + | 7.80 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Ethernet ICs |
RoHS | Y |
Series | DP83815 |
Product | Ethernet Controllers |
Number of Transceivers | 1 Transceiver |
Data Rate | 10 Mb/s, 100 Mb/s |
Interface Type | PCI |
Operating Supply Voltage | 3.3 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Mounting Style | SMD/SMT |
Package / Case | NFBGA-160 |
Packaging | Tray |
Brand | Texas Instruments |
Supply Current - Max | 170 mA |
Duplex | Full Duplex, Half Duplex |
Moisture Sensitive | Yes |
Pd - Power Dissipation | 743 mW |
Product Type | Ethernet ICs |
Standard | 10BASE-T, 100BASE-TX |
Factory Pack Quantity | 119 |
Subcategory | Communication & Networking ICs |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3.3 V |
Unit Weight | 0.010166 oz |
For more information, please refer to datasheet
Documents
DP83815DUJB/NOPB Datasheet |
More Information
DP83815 is a single-chip 10/100 Mb/s Ethernet Controller for the PCI bus. It is targeted at low-cost, high volume PC mother boards, adapter cards, and embedded systems. The DP83815 fully implements the V2.2 33 MHz PCI bus interface for host communications with power management support. Packet descriptors and data are transferred via bus-mastering, reducing the burden on the host CPU. The DP83815 can support full duplex 10/100 Mb/s transmission and reception, with minimum interframe gap.
