DP83822HRHBR Texas Instruments - Yeehing Electronics

Extended temperature, robust low-power 10/100-Mbps Ethernet PHY transceiver with 16-kV ESD

Pricing (USD)

Quantity	Unit Price
1 — 99	3.87
100 — 249	3.391
250 — 999	2.378
1,000 +	1.34

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Ethernet ICs
RoHS	Y
Series	DP83822H
Product	Physical Layer Transceivers
Number of Transceivers	1 Transceiver
Data Rate	10 Mb/s, 100 Mb/s
Interface Type	MII, RGMII, RMII
Operating Supply Voltage	1.8 V, 2.5 V, 3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT

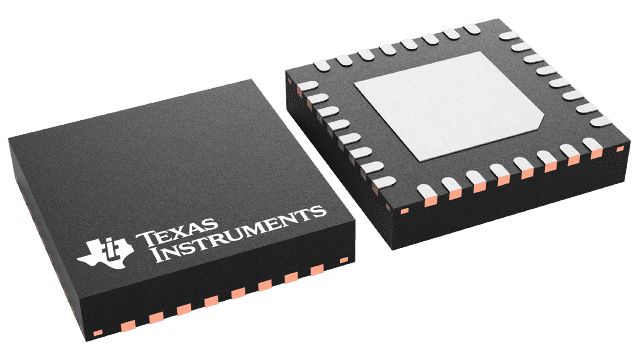

Package / Case	VQFN-32
Packaging	Reel
Brand	Texas Instruments
Development Kit	DP83822EVM
Duplex	Full Duplex, Half Duplex
Moisture Sensitive	Yes
Product Type	Ethernet ICs
Standard	100BASE-TX, 10BASE-Te
Factory Pack Quantity	3000
Subcategory	Communication & Networking ICs
Supply Voltage - Max	3.45 V
Supply Voltage - Min	1.71 V
Unit Weight	0.002134 oz

For more information, please refer to datasheet

Documents

DP83822HRHBR Datasheet

More Information

Ideal for harsh industrial environments, the DP83822 is an ultra-robust, low-power single-port 10/100 Mbps Ethernet PHY. It provides all physical layer functions needed to transmit and receive data over standard twisted-pair cables, or connect to an external fiber optic transceiver. Additionally, the DP83822 provides flexibility to connect to a MAC through a standard MII, RMII, or RGMII interface.
