Description

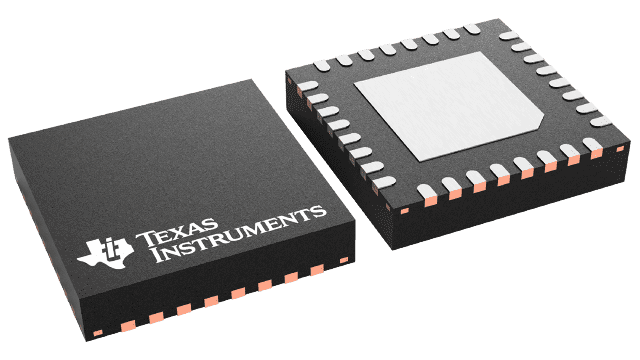

DP83822IRHBT Texas Instruments - Yeehing Electronics
Low-power, robust 10/100-Mbps Ethernet PHY transceiver with 16-kV ESD
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.576 |
| 100 — 249 | 2.128 |
| 250 — 999 | 1.528 |
| 1,000 + | 0.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Ethernet ICs |
| RoHS | Y |
| Series | DP83822I |
| Product | Physical Layer Transceivers |
| Number of Transceivers | 1 Transceiver |
| Data Rate | 10 Mb/s, 100 Mb/s |
| Interface Type | MII, RGMII, RMII |
| Operating Supply Voltage | 1.8 V, 2.5 V, 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-32 |
| Packaging | Reel |
| Brand | Texas Instruments |
| Duplex | Full Duplex, Half Duplex |
| Moisture Sensitive | Yes |
| Product Type | Ethernet ICs |
| Standard | 100BASE-FX, 100BASE-TX, 10BASE-Te |
| Factory Pack Quantity | 250 |
| Subcategory | Communication & Networking ICs |
| Supply Voltage - Max | 3.45 V |
| Supply Voltage - Min | 1.71 V |
| Unit Weight | 0.018695 oz |
For more information, please refer to datasheet
Documents
| DP83822IRHBT Datasheet |
More Information
Ideal for harsh industrial environments, the DP83822 is an ultra-robust, low-power single-port 10/100 Mbps Ethernet PHY. It provides all physical layer functions needed to transmit and receive data over standard twisted-pair cables, or connect to an external fiber optic transceiver. Additionally, the DP83822 provides flexibility to connect to a MAC through a standard MII, RMII, or RGMII interface.
