Description

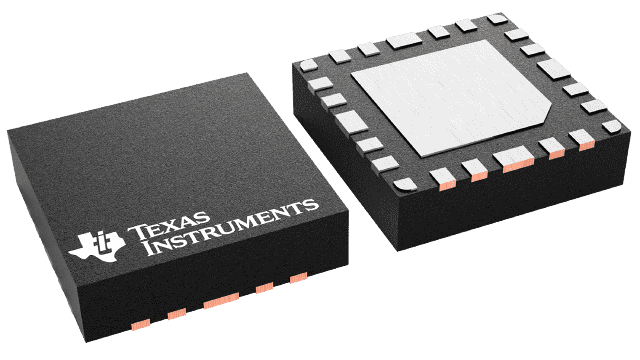

DP83825IRMQR Texas Instruments - Yeehing Electronics
Smallest form factor (3-mm by 3-mm), low-power 10/100-Mbps Ethernet PHY transceiver with 50-MHz c
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.896 |
100 — 249 | 0.74 |
250 — 999 | 0.532 |
1,000 + | 0.28 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
DP83825IRMQR Datasheet |
More Information
The DP83825I is an ultra small form factor, very low power Ethernet Physical Layer transceiver with integrated PMD sublayers to support 10BASE-Te, 100BASE-TX Ethernet protocols. It supports up to 150 meters reach over CAT5e cable. The DP83825I interfaces directly to twisted pair media via an external transformer. It interfaces to the MAC layer through Reduced MII (RMII) both in Master and Slave mode. It provide 50-MHz output clock in RMII Master Mode. This clock is synchronized to MDI derived clock to reduce the jitter in the system.
