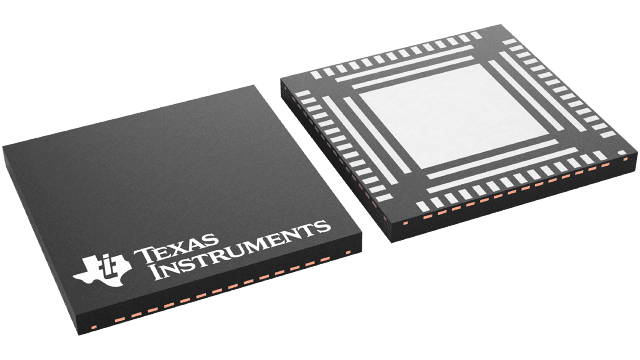

DP83847ALQA56AX/NOPB Texas Instruments - Yeehing Electronics
10/100-Mbps Ethernet PHY transceiver with 5-V tolerant I/Os
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.485 |
| 100 — 249 | 4.472 |
| 250 — 999 | 3.515 |
| 1,000 + | 2.09 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Ethernet ICs |
| RoHS | Y |
| Series | DP83847 |
| Product | Ethernet Transceivers |
| Number of Transceivers | 1 Transceiver |
| Data Rate | 100 Mb/s |
| Interface Type | MII |
| Operating Supply Voltage | 3 V to 3.6 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-56 |
| Packaging | Reel |
| Brand | Texas Instruments |
| Supply Current - Max | 106 mA (Typ) |
| Moisture Sensitive | Yes |
| Product Type | Ethernet ICs |
| Factory Pack Quantity | 2000 |
| Subcategory | Communication & Networking ICs |
| Tradename | PHYTER |
| Unit Weight | 0.004586 oz |
For more information, please refer to datasheet
Documents
| DP83847ALQA56AX/NOPB Datasheet |
More Information
The DP83847 is a full feature single Physical Layer device with integrated PMD sublayers to support both 10BASE-T and 100BASE-TX Ethernet protocols over Category 3 (10 Mb/s) or Category 5 unshielded twisted pair cables.
