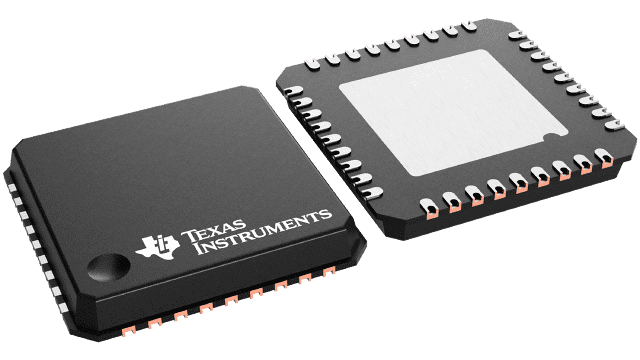

DP83TC811RWRNDTQ1 Texas Instruments - Yeehing Electronics
Low-power 100BASE-T1 automotive PHYTER™ Ethernet physical layer transceiver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 5.299 |
100 — 249 | 4.32 |
250 — 999 | 3.396 |
1,000 + | 2.06 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Ethernet ICs |
RoHS | Y |
Series | DP83TC811R-Q1 |
Product | Physical Layer Transceivers |
Number of Transceivers | 1 Transceiver |
Data Rate | 100 Mb/s |
Interface Type | MII, RGMII, RMII |
Operating Supply Voltage | 3.3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | VQFNP-36 |
Packaging | Reel |
Brand | Texas Instruments |
Supply Current - Max | 22 mA |
Development Kit | DP83TC811EVM |
Duplex | Full-Duplex, Half-Duplex |
Moisture Sensitive | Yes |
Product Type | Ethernet ICs |
Standard | 100BASE-T1 |
Factory Pack Quantity | 250 |
Subcategory | Communication & Networking ICs |
Supply Voltage - Max | 3.63 V |
Supply Voltage - Min | 2.97 V |
Unit Weight | 0.003862 oz |
For more information, please refer to datasheet
Documents
DP83TC811RWRNDTQ1 Datasheet |
More Information
The DP83TC811R-Q1 device is an IEEE 802.3bw-compliant automotive PHYTER™ Ethernet physical layer transceiver. It provides all physical layer functions needed to transmit and receive data over unshielded single twisted-pair cables. The device provides xMII flexibility with support for standard MII, RMII, and RGMII MAC interfaces.
