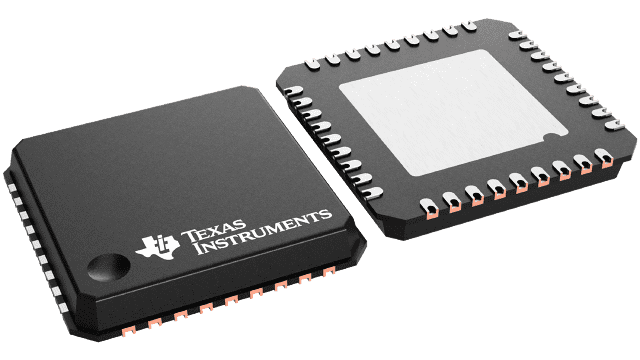

DP83TC811SWRNDTQ1 Texas Instruments - Yeehing Electronics

Automotive Grade 1, low-power 100BASE-T1 Ethernet PHY transceiver with xMII support & diagnostic too

Pricing (USD)

Quantity	Unit Price
1 — 99	6.368
100 — 249	5.192
250 — 999	4.081
1,000 +	2.77

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Ethernet ICs
RoHS	Y
Series	DP83TC811S-Q1
Product	Physical Layer Transceivers
Number of Transceivers	1 Transceiver
Data Rate	100 Mb/s
Interface Type	MII, RGMII, RMII, SGMII
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	VQFN-36
Packaging	Reel
Brand	Texas Instruments
Supply Current - Max	50 mA
Development Kit	DP83TC811SEVM
Duplex	Full-Duplex, Half-Duplex
Moisture Sensitive	Yes
Product Type	Ethernet ICs
Standard	100BASE-TI
Factory Pack Quantity	250
Subcategory	Communication & Networking ICs
Supply Voltage - Max	3.63 V
Supply Voltage - Min	2.97 V
Unit Weight	0.003862 oz

For more information, please refer to datasheet

Documents

DP83TC811SWRNDTQ1 Datasheet

More Information

The DP83TC811S-Q1 device is an IEEE 802.3bw-compliant automotive PHYTER™ Ethernet physical layer transceiver. It provides all physical layer functions needed to transmit and receive data over unshielded single twisted-pair cables. The device provides xMII flexibility with support for standard MII, RMII, RGMII, and SGMII MAC interfaces.
