DP83TC812RRHARQ1 Texas Instruments - Yeehing Electronics

TC-10 compliant 100BASE-T1 automotive Ethernet PHY with RGMII

Pricing (USD)

Quantity	Unit Price
1 — 99	4.015
100 — 249	3.273
250 — 999	2.573
1,000 +	1.53

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DP83TC812RRHARQ1 Datasheet

More Information

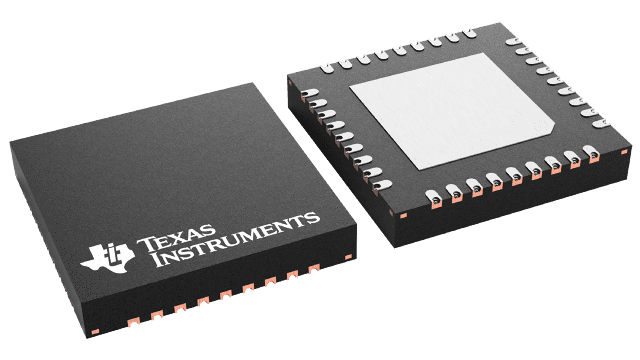

This device includes the Diagnostic Tool Kit, providing an extensive list of real-time monitoring tools, debug tools and test modes. Within the tool kit is the first integrated electrostatic discharge (ESD) monitoring tool. It is capable of counting ESD events on MDI as well as providing real-time monitoring through the use of a programmable interrupt. Additionally, the DP83TC812-Q1 includes a pseudo random binary sequence (PRBS) frame generation tool, which is fully compatible with internal loopbacks, to transmit and receive data without the use of a MAC. The device is housed in a 6.00-mm × 6.00-mm, 36-pin VQFN wettable flank package. This device is pin-2-pin compatible with DP83TG720 (1000BASE-T1). It is also form factor compatible with DP83TC811. This would allow for a single PCB layout to be used for DP83TC811, DP83TC812, DP83TC814, and DP83TG720.
