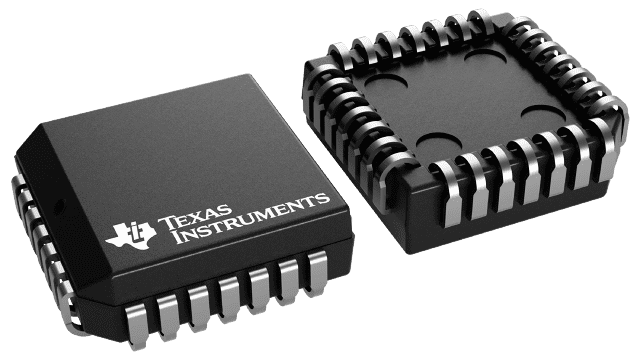

DP8570AV/NOPB


YeeHing #: Y003-DP8570AV/NOPB
Inventory: 4400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DP8570AV/NOPB Texas Instruments - Yeehing Electronics

Timer control peripheral (TCP)

Pricing (USD)

Quantity Unit Price
1 — 99 26.209
100 — 249 23.297
250 — 999 19.151
1,000 + 11.99

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Real Time Clock
RoHS Y
Mounting Style SMD/SMT
Package / Case PLCC-28
RTC Bus Interface Parallel
Date Format DW
Time Format HH
Battery Backup Switching Backup Switching
RTC Memory Size 32 B
Supply Voltage - Max 5.5 V
Supply Voltage - Min 4.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Tube
Function Alarm, Calendar, Clock, Interrupt
Height 3.68 mm
Length 11.43 mm
Product Real Time Clocks
Series DP8570A
Width 11.43 mm
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Real Time Clock
Factory Pack Quantity 35
Subcategory Clock & Timer ICs
Unit Weight 0.041719 oz

For more information, please refer to datasheet

Documents

DP8570AV/NOPB Datasheet

More Information

The DP8570A is intended for use in microprocessor based systems where information is required for multi-tasking, data logging or general time of day/date information. This device is implemented in low voltage silicon gate microCMOS technology to provide low standby power in battery back-up environments. The circuit's architecture is such that it looks like a contiguous block of memory or I/O ports. The address space is organized as 2 software selectable pages of 32 bytes. This includes the Control Registers, the Clock Counters, the Alarm Compare RAM, the Timers and their data RAM, and the Time Save RAM. Any of the RAM locations that are not being used for their intended purpose may be used as general purpose CMOS RAM.
