Texas Instruments

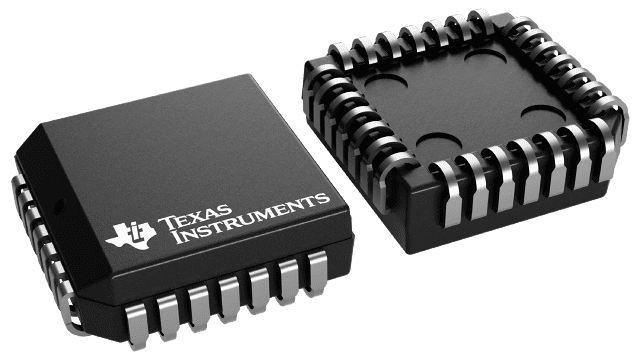

DP8573AV/NOPB
DP8573AV/NOPB
Regular price
$7.64 USD
Regular price
Sale price
$7.64 USD
Unit price
per
Couldn't load pickup availability
DP8573AV/NOPB Texas Instruments - Yeehing Electronics
Real-time clock (RTC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 18.107 |
| 100 — 249 | 15.817 |
| 250 — 999 | 12.195 |
| 1,000 + | 7.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Real Time Clock |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | PLCC-28 |
| RTC Bus Interface | Parallel |
| Date Format | DW |
| Time Format | HH |
| Battery Backup Switching | Backup Switching |
| RTC Memory Size | 32 B |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Function | Calendar, Clock |
| Height | 3.68 mm |
| Length | 11.43 mm |
| Series | DP8573A |
| Width | 11.43 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Real Time Clocks |
| Factory Pack Quantity | 35 |
| Subcategory | Clock & Timer ICs |
| Unit Weight | 0.041719 oz |
For more information, please refer to datasheet
Documents
| DP8573AV/NOPB Datasheet |
More Information
The DP8573A is intended for use in microprocessor based systems where information is required for multi-tasking, data logging or general time of day/date information. This device is implemented in low voltage silicon gate microCMOS technology to provide low standby power in battery back-up environments. The circuit's architecture is such that it looks like a contiguous block of memory or I/O ports organized as one block of 32 bytes. This includes the Control Registers, the Clock Counters, the Alarm Compare RAM, and the Time Save RAM.
