DRV10964FFDSNR Texas Instruments - Yeehing Electronics

5-V nominal, 1.8-A peak sensorless sinusoidal control 3-phase BLDC motor driver with automatic tune

Pricing (USD)

Quantity	Unit Price
1 — 99	0.887
100 — 249	0.733
250 — 999	0.526
1,000 +	0.32

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Product	Brushless DC Motor Controllers
Type	3 Phase
Operating Supply Voltage	2.1 V to 5.5 V
Output Current	500 mA
Operating Supply Current	6.5 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SON-10
Packaging	Reel
Features	Tach/FG Feedback, Integrated Motor Control, Integrated FETs
Number of Outputs	3 Output
Operating Temperature Range	- 40 C to + 125 C
Series	DRV10964
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Motor / Motion / Ignition Controllers & Drivers
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000921 oz

For more information, please refer to datasheet

Documents

DRV10964FFDSNR Datasheet

More Information

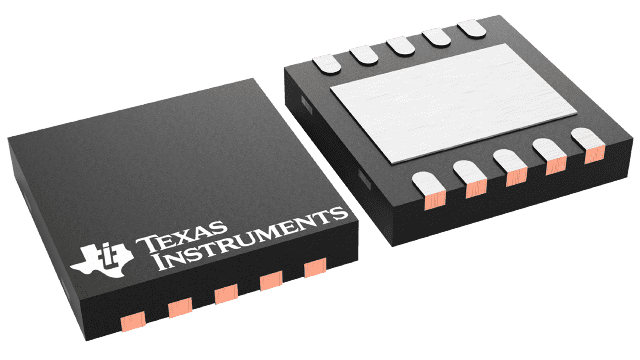

The DRV10964 is a three-phase sensorless motor driver with integrated power MOSFETs. It is specifically designed for high-efficiency, low-noise and low-external component count motor drive applications. The proprietary sensorless windowless 180° sinusoidal control scheme offers ultra-quiet motor drive performance. The DRV10964 contains an intelligent lock detect function, combined with other internal protection circuits to ensure safe operation. The DRV10964 is available in a thermally efficient 10-pin USON package with an exposed thermal pad.
