Texas Instruments
DRV10964FFDSNT
DRV10964FFDSNT
Regular price
$0.33 USD
Regular price
Sale price
$0.33 USD
Unit price
per
Couldn't load pickup availability

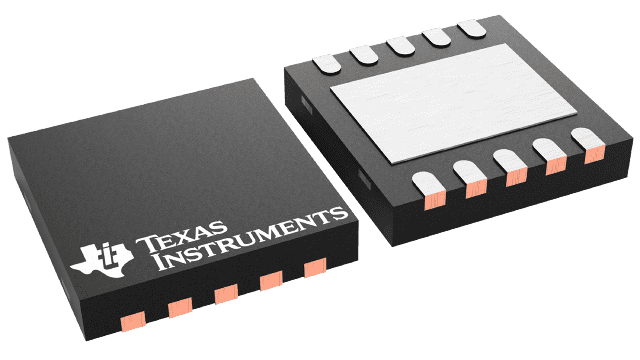

DRV10964FFDSNT Texas Instruments - Yeehing Electronics
5-V nominal, 1.8-A peak sensorless sinusoidal control 3-phase BLDC motor driver with automatic tune
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.064 |
| 100 — 249 | 0.879 |
| 250 — 999 | 0.631 |
| 1,000 + | 0.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushless DC Motor Controllers |
| Type | 3 Phase |
| Operating Supply Voltage | 2.1 V to 5.5 V |
| Output Current | 500 mA |
| Operating Supply Current | 6.5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SON-10 |
| Packaging | Reel |
| Features | Tach/FG Feedback, Integrated Motor Control, Integrated FETs |
| Number of Outputs | 3 Output |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | DRV10964 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000921 oz |
For more information, please refer to datasheet
Documents
| DRV10964FFDSNT Datasheet |
More Information
The DRV10964 is a three-phase sensorless motor driver with integrated power MOSFETs. It is specifically designed for high-efficiency, low-noise and low-external component count motor drive applications. The proprietary sensorless windowless 180° sinusoidal control scheme offers ultra-quiet motor drive performance. The DRV10964 contains an intelligent lock detect function, combined with other internal protection circuits to ensure safe operation. The DRV10964 is available in a thermally efficient 10-pin USON package with an exposed thermal pad.
