Texas Instruments

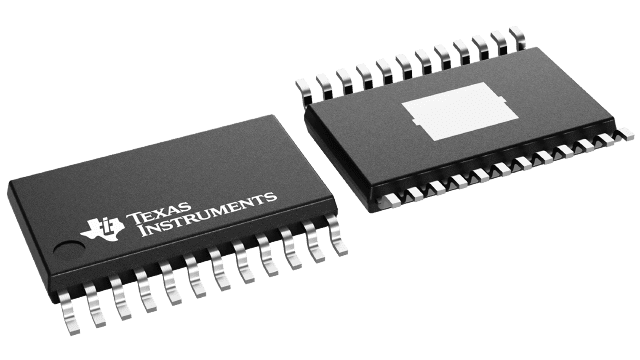

DRV10970PWP
DRV10970PWP
Regular price
$0.69 USD
Regular price
Sale price
$0.69 USD
Unit price
per
Couldn't load pickup availability
DRV10970PWP Texas Instruments - Yeehing Electronics
12-V nominal, 3-A peak sensored sinusoidal or trapezoidal control 3-phase BLDC motor driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.992 |
| 100 — 249 | 1.745 |
| 250 — 999 | 1.224 |
| 1,000 + | 0.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushless DC Motor Controllers |
| Type | 3 Phase |
| Operating Supply Voltage | 5 V to 18 V |
| Output Current | 1.5 A |
| Operating Supply Current | 5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-24 |
| Packaging | Reel |
| Features | Adaptive Drive Angle Adjustment (ADAA), Hall Element Comparators, Integrated Motor Control, Integra |
| Number of Outputs | 3 Output |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | - 1 V to 20 V |
| Series | DRV10970 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003221 oz |
For more information, please refer to datasheet
Documents
| DRV10970PWP Datasheet |
More Information
The DRV10970 is an integrated three-phase BLDC motor driver for home appliance, cooling fans, and other general-purpose motor control applications. The embedded intelligence, small form factor, and simple pinout structure reduce the design complexity, board space, and system cost. The integrated protections improve the system robustness and reliability.
