Texas Instruments
DRV10974PWPR
DRV10974PWPR
Regular price
$0.50 USD
Regular price
Sale price
$0.50 USD
Unit price
per
Couldn't load pickup availability

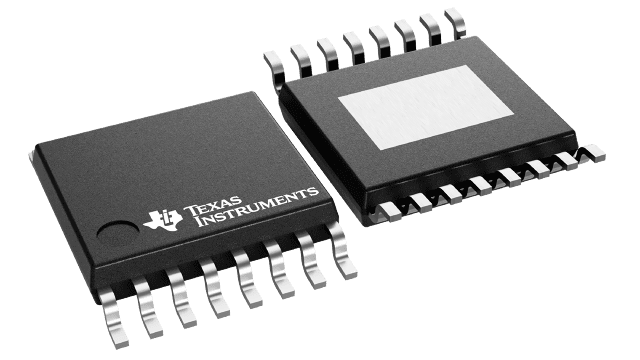

DRV10974PWPR Texas Instruments - Yeehing Electronics
12-V nominal, 2.5-A peak sensorless sinusoidal control 3-phase BLDC motor driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.604 |
| 100 — 249 | 1.325 |
| 250 — 999 | 0.952 |
| 1,000 + | 0.50 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushless DC Motor Controllers |
| Type | Sensorless BLDC Motor Driver |
| Operating Supply Voltage | 4.4 V to 18 V |
| Output Current | 1 A |
| Operating Supply Current | 5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-16 |
| Packaging | Reel |
| Features | Self-tuning, Rotor Lock Protection, Integrated Motor Control, Integrated FETs, Tach/FG Feedback |
| Number of Outputs | 3 Output |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | DRV10974 |
| Brand | Texas Instruments |
| Development Kit | DRV10974EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003326 oz |
For more information, please refer to datasheet
Documents
| DRV10974PWPR Datasheet |
More Information
The DRV10974 device is a three-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 1 A (rms). The device is designed for cost-sensitive, low-noise, and low-external-component-count applications.
