Texas Instruments
DRV10975ZRHFR
DRV10975ZRHFR
Regular price
$0.63 USD
Regular price
Sale price
$0.63 USD
Unit price
per
Couldn't load pickup availability

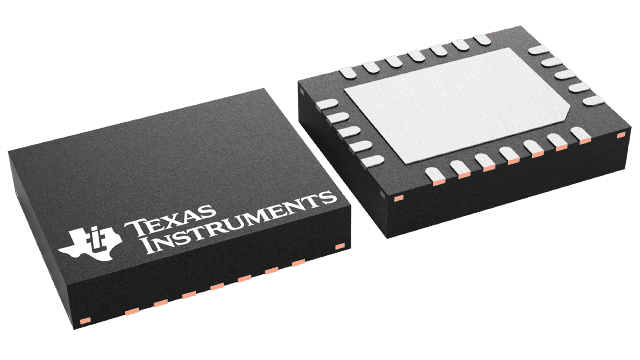

DRV10975ZRHFR Texas Instruments - Yeehing Electronics
12-V nominal, 2-A peak sensorless sinusoidal control 3-phase BLDC motor driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.029 |
| 100 — 249 | 1.676 |
| 250 — 999 | 1.204 |
| 1,000 + | 0.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushless DC Motor Controllers |
| Type | Half Bridge |
| Operating Supply Voltage | 6.5 V to 18 V |
| Output Current | 1.5 A |
| Operating Supply Current | 5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Packaging | Reel |
| Features | Buck Step Down Converter, Initial Position Detect (IPD), Rotor Lock Protection, SPI/I2C, Integrated |
| Number of Outputs | 3 Output |
| Operating Frequency | 100 kHz |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 19 V |
| Series | DRV10975 |
| Brand | Texas Instruments |
| Development Kit | DRV10975EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002360 oz |
For more information, please refer to datasheet
Documents
| DRV10975ZRHFR Datasheet |
More Information
The DRV10975 device is a three-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 1.5 A. The device is specifically designed for cost-sensitive, low-noise, low-external-component-count applications.
