Texas Instruments

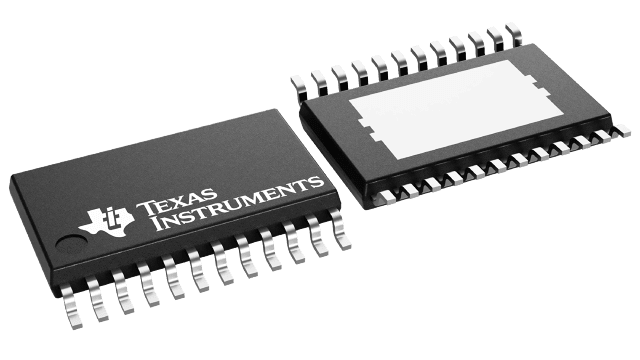

DRV10983SQPWPRQ1
DRV10983SQPWPRQ1
Regular price
$8.91 USD
Regular price
Sale price
$8.91 USD
Unit price
per
Couldn't load pickup availability
DRV10983SQPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive 12-V battery, 3.5-A peak sensorless sinusoidal control 3-phase BLDC motor driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.311 |
| 100 — 249 | 2.901 |
| 250 — 999 | 2.034 |
| 1,000 + | 8.91 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushless DC Motor Controllers |
| Type | 3 Phase |
| Operating Supply Voltage | 6.2 V to 28 V |
| Output Current | 2 A |
| Operating Supply Current | 13 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-24 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Buck Step Down Converter, Initial Position Detect (IPD), Rotor Lock Protection, SPI/I2C, Integrated |
| Number of Outputs | 3 Output |
| Operating Frequency | 100 kHz |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 30 V |
| Series | DRV10983-Q1 |
| Brand | Texas Instruments |
| Load Voltage Rating | 6.2 V to 28 V |
| Development Kit | DRV10983Q1EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.005527 oz |
For more information, please refer to datasheet
Documents
| DRV10983SQPWPRQ1 Datasheet |
More Information
The DRV10983-Q1 device is a 3-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 2 A. The device is specifically designed for cost-sensitive, low-noise, low-external-component-count fan and pump applications.
