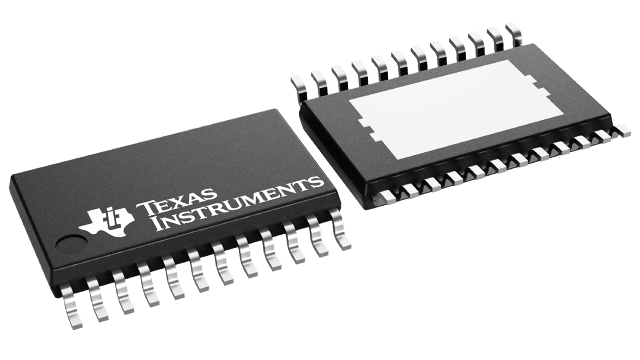

DRV10987SPWPR Texas Instruments - Yeehing Electronics
12-V to 24-V nominal, 3.5-A peak sensorless sinusoidal control 3-phase BLDC motor driver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.224 |
100 — 249 | 2.825 |
250 — 999 | 1.981 |
1,000 + | 1.12 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Motor / Motion / Ignition Controllers & Drivers |
RoHS | Y |
Product | Brushless DC Motor Controllers |
Type | 3 Phase |
Operating Supply Voltage | 6.2 V to 28 V |
Output Current | 2 A |
Operating Supply Current | 13 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-24 |
Packaging | Reel |
Features | Buck Step Down Converter, Initial Position Detect (IPD), Rotor Lock Protection, SPI/I2C, Integrated |
Number of Outputs | 3 Output |
Operating Temperature Range | - 40 C to + 125 C |
Series | DRV10987 |
Brand | Texas Instruments |
Development Kit | DRV10987EVM |
Moisture Sensitive | Yes |
Product Type | Motor / Motion / Ignition Controllers & Drivers |
Factory Pack Quantity | 2000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.005527 oz |
For more information, please refer to datasheet
Documents
DRV10987SPWPR Datasheet |
More Information
The DRV10987 device is a 3-phase sensorless 180° sinusodial motor driver with integrated power MOSFETs, which can provide continuous drive current up to 2 A. The device is specifically designed for cost-sensitive, low-noise, low-external-component-count fan and pump applications.
