Texas Instruments

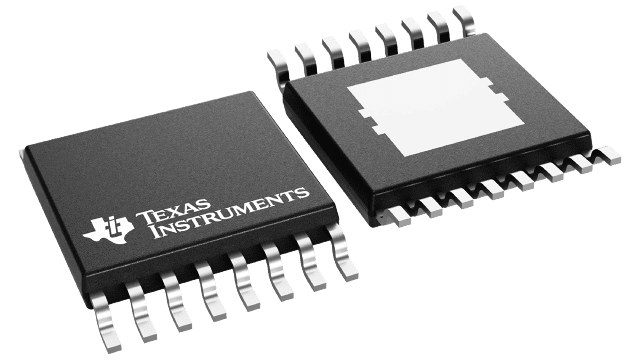

DRV2510QPWPRQ1
DRV2510QPWPRQ1
Regular price
$0.60 USD
Regular price
Sale price
$0.60 USD
Unit price
per
Couldn't load pickup availability
DRV2510QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive 3A haptic driver for solenoids with integrated diagnostics and load-dump protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.906 |
| 100 — 249 | 1.574 |
| 250 — 999 | 1.131 |
| 1,000 + | 0.60 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Haptic Drivers |
| Type | Automotive Haptic Driver |
| Operating Supply Voltage | 5 V to 18 V |
| Output Current | 3 A |
| Operating Supply Current | 16 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-16 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Integrated Load-Dump Protection (40 V), Enable |
| Number of Outputs | 2 Output |
| Operating Frequency | 400 kHz |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 20 V |
| Series | DRV2510-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004342 oz |
For more information, please refer to datasheet
Documents
| DRV2510QPWPRQ1 Datasheet |
More Information
The DRV2510-Q1 device is a high current haptic driver specifically designed for inductive loads, such as solenoids and voice coils.
