Description

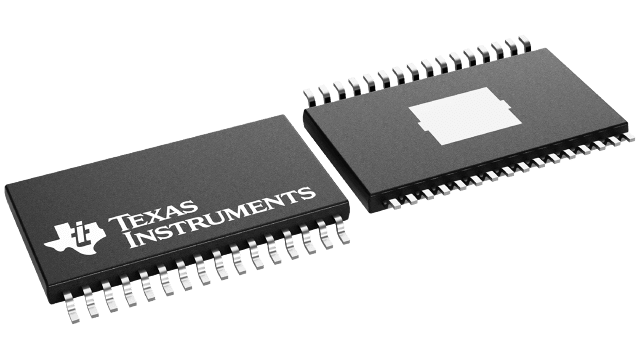

DRV2511QDAPRQ1 Texas Instruments - Yeehing Electronics
Automotive 8A haptic driver for solenoids with integrated fault-protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.027 |
| 100 — 249 | 1.674 |
| 250 — 999 | 1.203 |
| 1,000 + | 0.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Haptic Drivers |
| Type | Automotive Haptic Driver |
| Operating Supply Voltage | 4.5 V to 26 V |
| Output Current | 8 A |
| Operating Supply Current | 30 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-32 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Enable |
| Number of Outputs | 2 Output |
| Operating Frequency | 1.2 MHz |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | DRV2511-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.009563 oz |
For more information, please refer to datasheet
Documents
| DRV2511QDAPRQ1 Datasheet |
More Information
The DRV2511-Q1 device is a high current haptic driver specifically designed for inductive loads, such as solenoids and voice coils.
