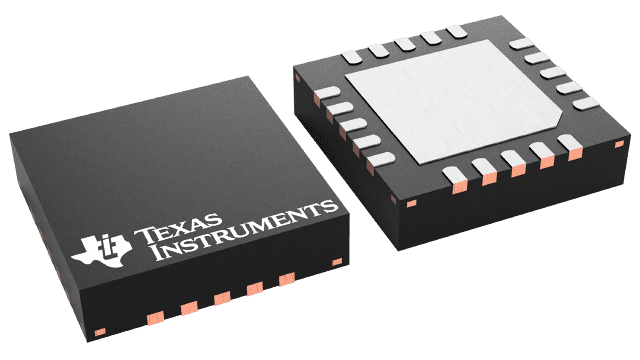

DRV2665RGPR Texas Instruments - Yeehing Electronics

Haptic driver for piezo with integrated 105-V boost converter and DAC

Pricing (USD)

Quantity	Unit Price
1 — 99	2.614
100 — 249	2.29
250 — 999	1.606
1,000 +	0.91

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Product	Haptic Drivers
Type	Piezo Haptic Driver
Operating Supply Voltage	3 V to 5.5 V
Operating Supply Current	5 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	QFN-20
Packaging	Reel
Input Type	Analog, I2C, PWM
Operating Temperature Range	- 40 C to + 70 C
Output Voltage	200 V
Series	DRV2665
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Motor / Motion / Ignition Controllers & Drivers
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002469 oz

For more information, please refer to datasheet

Documents

DRV2665RGPR Datasheet

More Information

The device is a piezo haptic driver with integrated 105-V boost switch, integrated power diode, integrated fully-differential amplifier, and integrated digital front end. This versatile device is capable of driving both high-voltage and low-voltage piezo haptic actuators. The input signal can be driven as haptic packets over the I2C port or through the analog inputs.
