DRV2665RGPT Texas Instruments - Yeehing Electronics

Haptic driver for piezo with integrated 105-V boost converter and DAC

Pricing (USD)

Quantity	Unit Price
1 — 99	4.114
100 — 249	3.354
250 — 999	2.636
1,000 +	1.57

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	70
Factory Pack Quantity	250

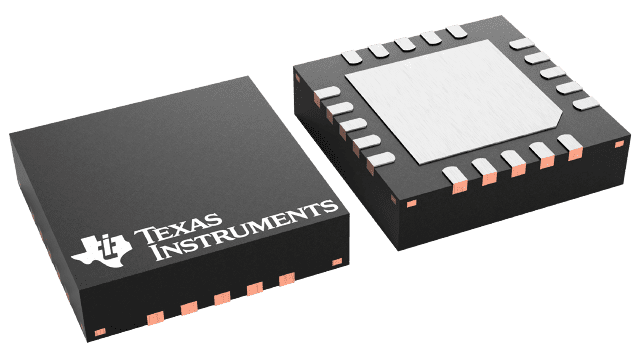

Package | Pins	VQFN (RGP) | 20

For more information, please refer to datasheet

Documents

DRV2665RGPT Datasheet

More Information

The device is a piezo haptic driver with integrated 105-V boost switch, integrated power diode, integrated fully-differential amplifier, and integrated digital front end. This versatile device is capable of driving both high-voltage and low-voltage piezo haptic actuators. The input signal can be driven as haptic packets over the I2C port or through the analog inputs.
