Texas Instruments

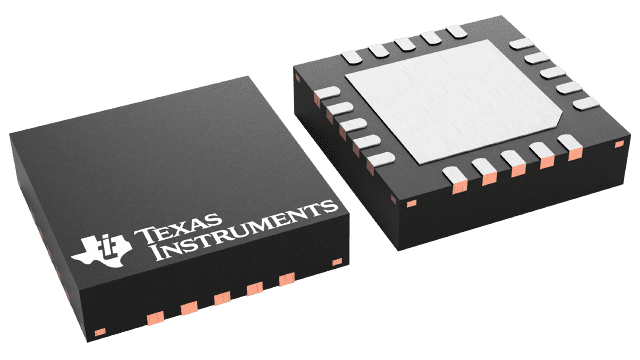

DRV2700RGPT
DRV2700RGPT
Regular price
$1.32 USD
Regular price
Sale price
$1.32 USD
Unit price
per
Couldn't load pickup availability
DRV2700RGPT Texas Instruments - Yeehing Electronics
Industrial piezo driver with integrated 105-V boost converter in QFN package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.474 |
| 100 — 249 | 2.832 |
| 250 — 999 | 2.226 |
| 1,000 + | 1.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-20 |
| Supply Voltage - Max | 5.5 V |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 550 kHz |
| SR - Slew Rate | 0.6 V/us |
| CMRR - Common Mode Rejection Ratio | 100 dB |
| Vos - Input Offset Voltage | 25 mV |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Shutdown | Shutdown |
| Series | DRV2700 |
| Packaging | Reel |
| Amplifier Type | General Purpose Amplifier |
| Product | Operational Amplifiers |
| Brand | Texas Instruments |
| THD plus Noise | 1 % |
| Moisture Sensitive | Yes |
| Product Type | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 60 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | 5.5 V |
| Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
| DRV2700RGPT Datasheet |
More Information
The DRV2700 device is a single-chip piezo driver with an integrated 105-V boost switch, integrated power diode, and integrated fully-differential amplifier. This versatile device is capable of driving both high-voltage and low-voltage piezoelectric loads. The input signal can be either differential or single-ended and AC or DC coupled. The DRV2700 device supports four GPIO-controlled gains: 28.8 dB, 34.8 dB, 38.4 dB, and 40.7 dB.
