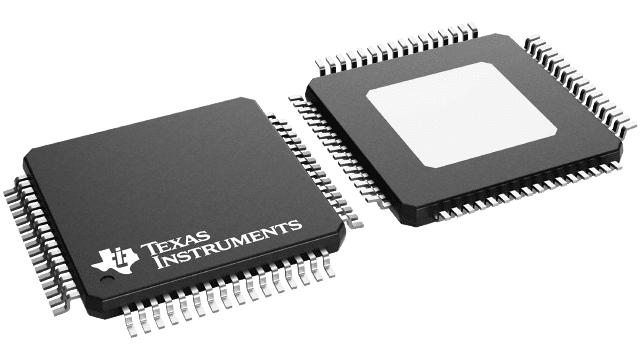

DRV3201QPAPQ1


YeeHing #: Y011-DRV3201QPAPQ1
Inventory: 7800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DRV3201QPAPQ1 Texas Instruments - Yeehing Electronics

Automotive 12-V battery 3-phase gate driver with current shunt amplifiers & enhanced protection

Pricing (USD)

Quantity Unit Price
1 — 99 7.82
100 — 249 6.375
250 — 999 5.011
1,000 + 2.97

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Motor / Motion / Ignition Controllers & Drivers
RoHS Y
Operating Supply Voltage 4.75 V to 38 V
Output Current 1 A
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case HTQFP-64
Qualification AEC-Q100
Packaging Tube
Features Current Sense Amplifier, SPI/I2C, SafeTI
Number of Outputs 2 Output
Operating Temperature Range - 40 C to + 125 C
Series DRV3201-Q1
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Motor / Motion / Ignition Controllers & Drivers
Factory Pack Quantity 160
Subcategory PMIC - Power Management ICs
Unit Weight 0.017506 oz

For more information, please refer to datasheet

Documents

DRV3201QPAPQ1 Datasheet

More Information

The bridge driver is dedicated to automotive 3 phase brushless DC motor control including safety relevant applications. It provides six dedicated drivers for normal level N-Channel MOSFET transistors. The driver capability is designed to handle gate charges of 250 nC, and the driver source/sink currents are programmable for easy output slope adjustment. The device also incorporates sophisticated diagnosis, protection and monitoring features through an SPI interface. A boost converter with integrated FET provides the overdrive voltage, allowing full control on the power-stages even for low battery voltage down to 4.75 V.
