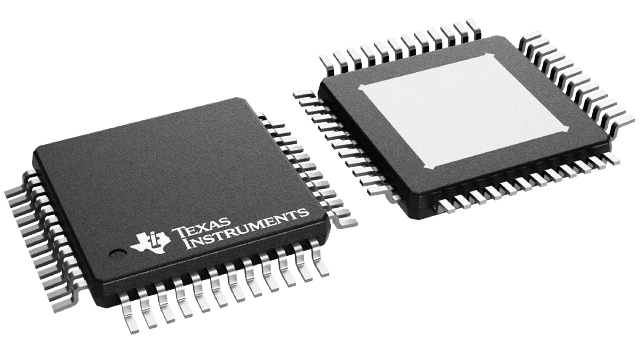

DRV3205QPHPRQ1 Texas Instruments - Yeehing Electronics

Automotive 12-V & 24-V battery 3-phase gate driver with current shunt amplifiers & enhanced protecti

Pricing (USD)

Quantity	Unit Price
1 — 99	8.015
100 — 249	6.534
250 — 999	5.136
1,000 +	3.05

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Product	Brushless DC Motor Controllers
Type	3 Phase
Operating Supply Voltage	4.75 V to 40 V
Output Current	1 A
Operating Supply Current	22 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	HTQFP-48
Qualification	AEC-Q100
Packaging	Reel
Features	Current Sense Amplifier, SPI/I2C, Watchdog Timer, SafeTI
Number of Outputs	1 Output
Operating Temperature Range	- 40 C to + 125 C
Series	DRV3205-Q1
Brand	Texas Instruments
Development Kit	DRV3205EVM
Moisture Sensitive	Yes
Product Type	Motor / Motion / Ignition Controllers & Drivers
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.008935 oz

For more information, please refer to datasheet

Documents

DRV3205QPHPRQ1 Datasheet

More Information

The DRV3205-Q1 bridge driver is dedicated to automotive three-phase brushless DC motor control applications. The device provides six dedicated drivers for standard-level N-channel MOSFET transistors. A boost converter with an integrated FET provides the overdrive voltage, allowing full control on the power stages even for low battery voltage down to 4.75 V. The strong driver strength is suitable for high-current applications and programmable to limit peak output current.
