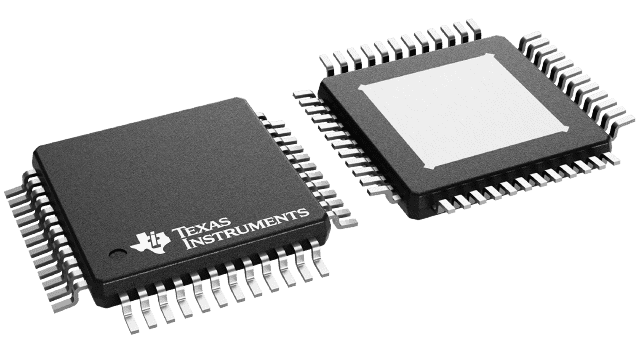

DRV3245AEPHPRQ1


YeeHing #: Y011-DRV3245AEPHPRQ1
Inventory: 5800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DRV3245AEPHPRQ1 Texas Instruments - Yeehing Electronics

Automotive grade 0 12-V battery 3-phase gate driver unit with accurate current sensing & enhanced pr

Pricing (USD)

Quantity Unit Price
1 — 99 6.999
100 — 249 5.706
250 — 999 4.485
1,000 + 2.66

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

DRV3245AEPHPRQ1 Datasheet

More Information

The DRV3245E-Q1 device is a FET gate driver IC for three-phase motor-drive applications. The device is intended for high-temperature automotive applications and is designed according to the applicable requirements of ISO 26262 for functional safety applications. The device provides three half-bridge drivers each capable of driving a high-side and low-side N-channel MOSFET while also providing sophisticated protection and monitoring of the FETs. A charge-pump driver enables 100% duty cycle and supports low battery voltages during cold-crank operation. The integration of current-sense amplifiers, integrated phase comparators, and SPI-based configuration enable reduction of the bill of materials (BOM) and space on the printed circuit board (PCB) because of the elimination of most external and passive components.
