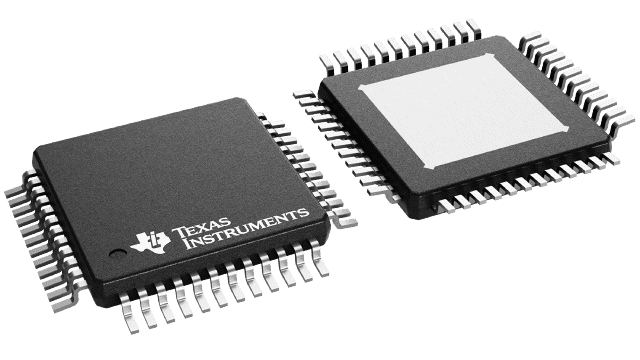

DRV3245BQPHPRQ1 Texas Instruments - Yeehing Electronics
Automotive grade 1 12-V battery 3-phase gate driver unit with accurate current sensing & enhanced pr
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.052 |
100 — 249 | 4.934 |
250 — 999 | 3.878 |
1,000 + | 2.30 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Motor / Motion / Ignition Controllers & Drivers |
RoHS | Y |
Product | Brushless DC Motor Controllers |
Type | 3 Phase |
Operating Supply Voltage | 4.5 V to 45 V |
Output Current | 1 A |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | HTQFP-48 |
Packaging | Reel |
Features | Current Sense Amplifier, SPI/I2C, Phase Comparators, Watchdog Timer, SafeTI |
Operating Temperature Range | - 40 C to + 125 C |
Series | DRV3245Q-Q1 |
Brand | Texas Instruments |
Development Kit | BOOSTXL-DRV3245AQ1 |
Moisture Sensitive | Yes |
Product Type | Motor / Motion / Ignition Controllers & Drivers |
Factory Pack Quantity | 1000 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
DRV3245BQPHPRQ1 Datasheet |
More Information
The DRV3245Q-Q1 device is a FET gate driver IC for three-phase motor-drive applications designed according to the applicable requirements of ISO 26262 for functional safety applications. The device provides three half-bridge drivers each capable of driving a high-side and low-side N-channel MOSFET while also providing sophisticated protection and monitoring of the FETs. A charge-pump driver enables 100% duty cycle and supports low battery voltages during cold-crank operation. The integration of current-sense amplifiers, integrated phase comparators, and SPI-based configuration of the driver and its peripherals enable reduction of the bill of materials (BOM) and space on the printed circuit board (PCB) because of the elimination of most external and passive components.
