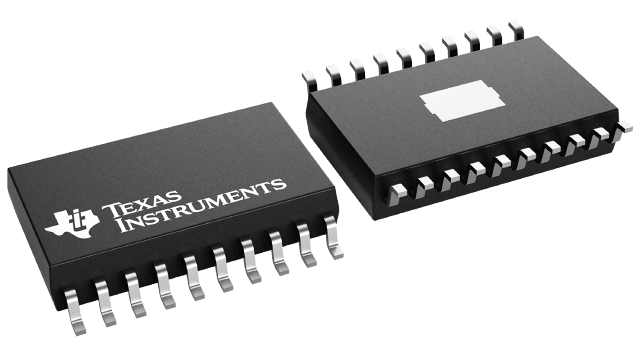

DRV401AMDWPREP Texas Instruments - Yeehing Electronics

Enhanced Product, Fluxgate Magnetic Sensor Signal Conditioning IC for Closed-Loop Applications

Pricing (USD)

Quantity	Unit Price
1 — 99	13.239
100 — 249	11.564
250 — 999	8.916
1,000 +	5.58

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Gate Drivers
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HSOP-20
Output Current	200 mA
Supply Voltage - Min	4.5 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Series	DRV401-EP
Packaging	Reel
Family	DRV401-EP
Features	AFE for Magnetic Current Sensing
Operating Temperature Range	- 55 C to + 125 C
Technology	Si
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	4.5 V to 5.5 V
Product Type	Gate Drivers
Reference Voltage	2.5 V
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Part # Aliases	V62/08630-01XE
Unit Weight	0.017870 oz

For more information, please refer to datasheet

Documents

DRV401AMDWPREP Datasheet

More Information

The DRV401 is designed to control and process signals from specific magnetic current sensors made by VACUUMSCHMELZE GmbH & Co. KG (VAC). A variety of current ranges and mechanical configurations are available. Combined with a VAC sensor, the DRV401 monitors both ac and dc currents to high accuracy.
