Texas Instruments

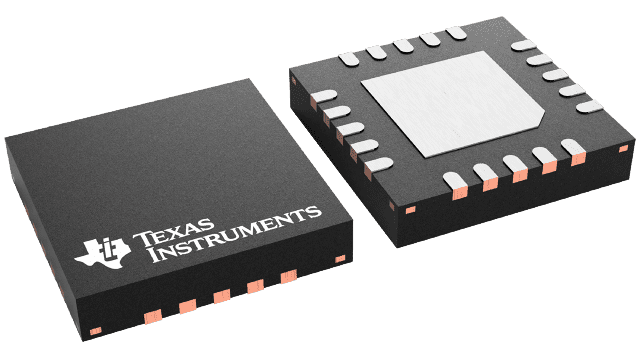

DRV425RTJT
DRV425RTJT
Couldn't load pickup availability
DRV425RTJT Texas Instruments - Yeehing Electronics
Fully-integrated fluxgate magnetic sensor for open-loop applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.072 |
| 100 — 249 | 4.95 |
| 250 — 999 | 3.891 |
| 1,000 + | 2.31 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 250 |
| Package | Pins | WQFN (RTJ) | 20 |
For more information, please refer to datasheet
Documents
| DRV425RTJT Datasheet |
More Information
The DRV425 is designed for single-axis magnetic field-sensing applications and enables electrically-isolated, high-sensitivity, and precise dc- and ac-field measurements. The device provides the unique and proprietary, integrated fluxgate sensor (IFG) with an internal compensation coil to support a high-accuracy sensing range of ±2 mT with a measurement bandwidth of up to 47 kHz. The low offset, offset drift, and noise of the sensor, combined with the precise gain, low gain drift, and very low nonlinearity provided by the internal compensation coil, result in unrivaled magnetic field measurement precision. The output of the DRV425 is an analog signal proportional to the sensed magnetic field.
