Texas Instruments

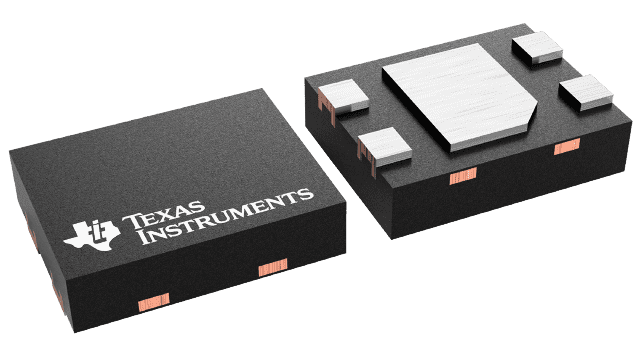

DRV5012AEDMRR
DRV5012AEDMRR
Regular price
$0.08 USD
Regular price
Sale price
$0.08 USD
Unit price
per
Couldn't load pickup availability
DRV5012AEDMRR Texas Instruments - Yeehing Electronics
Low power (as low as 3.3-µA), low voltage (up to 5.5-V) Hall effect latch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.379 |
| 100 — 249 | 0.257 |
| 250 — 999 | 0.199 |
| 1,000 + | 0.08 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| RoHS | Y |
| Type | Digital Latch Hall Effect Sensor |
| Operating Supply Current | 160 uA |
| Maximum Output Current | 5 mA |
| Operating Point Min/Max | 0.6 mT to 3.3 mT |
| Release Point Min/Max (Brp) | - 3.3 mT to - 0.6 mT |
| Operating Supply Voltage | 1.65 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | X2SON-4 |
| Packaging | Reel |
| Output Type | Push-Pull |
| Output Voltage | 5.5 V |
| Product | Hall Effect Latches |
| Sensitivity | 2 mT |
| Series | DRV5012 |
| Termination Style | SMD/SMT |
| Brand | Texas Instruments |
| Product Type | Hall Effect / Magnetic Sensors |
| Factory Pack Quantity | 3000 |
| Subcategory | Sensors |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
| DRV5012AEDMRR Datasheet |
More Information
The DRV5012 device is an ultra-low-power digital-latch Hall effect sensor with a pin-selectable sampling rate. ™
