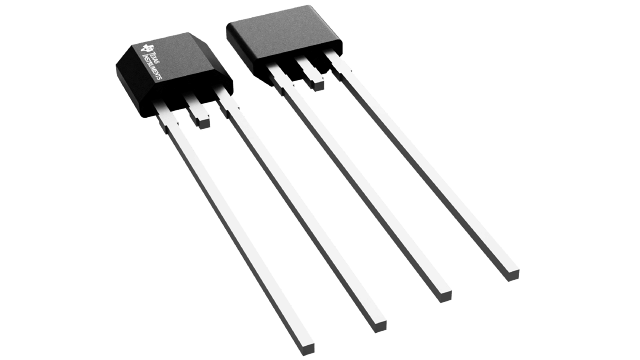

DRV5013AGELPGMQ1


YeeHing #: Y014-DRV5013AGELPGMQ1
Inventory: 4600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DRV5013AGELPGMQ1 Texas Instruments - Yeehing Electronics

Automotive, high voltage (up to 38V), high bandwidth (30-kHz) Hall effect latch

Pricing (USD)

Quantity Unit Price
1 — 99 0.469
100 — 249 0.361
250 — 999 0.266
1,000 + 0.15

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Board Mount Hall Effect / Magnetic Sensors
RoHS Y
Type Hall Effect Latch
Operating Supply Current 2.7 mA
Maximum Output Current 30 mA
Operating Point Min/Max 3 mT to 9 mT
Release Point Min/Max (Brp) - 9 mT to - 3 mT
Operating Supply Voltage 38 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 150 C
Mounting Style Through Hole
Package / Case TO-92-3
Qualification AEC-Q100
Packaging Ammo Pack
Output Type Open Drain
Output Voltage 38 V
Series DRV5013-Q1
Brand Texas Instruments
Product Type Hall Effect / Magnetic Sensors
Factory Pack Quantity 3000
Subcategory Sensors
Supply Voltage - Max 38 V
Supply Voltage - Min 2.7 V
Unit Weight 0.001305 oz

For more information, please refer to datasheet

Documents

DRV5013AGELPGMQ1 Datasheet

More Information

The DRV5013-Q1 device is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
