Description

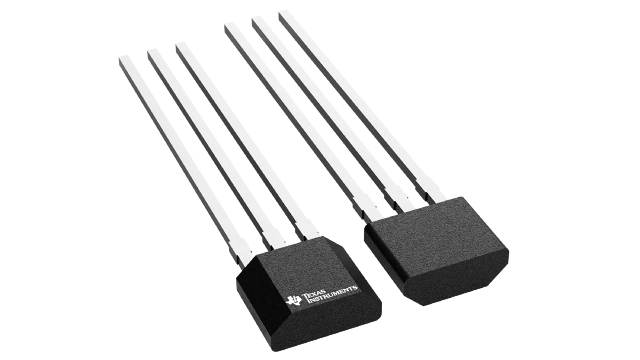

DRV5013BCQLPG Texas Instruments - Yeehing Electronics
High voltage (up to 38-V), high bandwidth (30-kHz) Hall effect latch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.889 |
| 100 — 249 | 0.684 |
| 250 — 999 | 0.504 |
| 1,000 + | 0.25 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| RoHS | Y |
| Type | Hall Effect Latch |
| Operating Supply Current | 2.7 mA |
| Maximum Output Current | 30 mA |
| Operating Point Min/Max | 6 mT to 18 mT |
| Release Point Min/Max (Brp) | - 18 mT to - 6 mT |
| Operating Supply Voltage | 38 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | Through Hole |
| Package / Case | TO-92-3 |
| Packaging | Ammo Pack |
| Output Type | Digital |
| Output Voltage | 38 V |
| Series | DRV5013 |
| Brand | Texas Instruments |
| Product Type | Hall Effect / Magnetic Sensors |
| Factory Pack Quantity | 3000 |
| Subcategory | Sensors |
| Supply Voltage - Max | 38 V |
| Supply Voltage - Min | 2.5 V |
| Unit Weight | 0.001305 oz |
For more information, please refer to datasheet
Documents
| DRV5013BCQLPG Datasheet |
More Information
The DRV5013 device is a chopper-stabilized Hall effect sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
