Texas Instruments

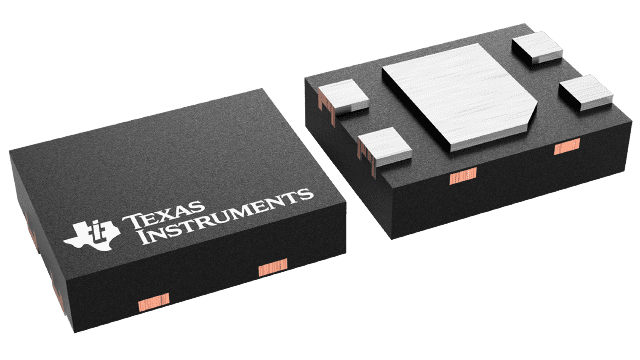

DRV5032FADMRR
DRV5032FADMRR
Regular price
$0.10 USD
Regular price
Sale price
$0.10 USD
Unit price
per
Couldn't load pickup availability
DRV5032FADMRR Texas Instruments - Yeehing Electronics
Low power (5 Hz, <1µA), low voltage (up to 5.5V) switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.431 |
| 100 — 249 | 0.293 |
| 250 — 999 | 0.226 |
| 1,000 + | 0.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| RoHS | Y |
| Type | Omnipolar |
| Operating Supply Current | 2.3 uA |
| Maximum Output Current | 5 mA |
| Operating Point Min/Max | 1.5 mT to 4.8 mT |
| Release Point Min/Max (Brp) | 0.5 mT to 3 mT |
| Operating Supply Voltage | 1.65 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | X2SON-4 |
| Packaging | Reel |
| Output Type | Push-Pull |
| Output Voltage | 5.5 V |
| Product | Hall Effect Latches / Switches |
| Series | DRV5032 |
| Termination Style | SMD/SMT |
| Brand | Texas Instruments |
| Product Type | Hall Effect / Magnetic Sensors |
| Factory Pack Quantity | 3000 |
| Subcategory | Sensors |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
| DRV5032FADMRR Datasheet |
More Information
The DRV5032 device is an ultra-low-power digital-switch Hall effect sensor, designed for the most compact and battery-sensitive systems. The device is offered in multiple magnetic thresholds, sampling rates, output drivers, and packages to accommodate various applications.
