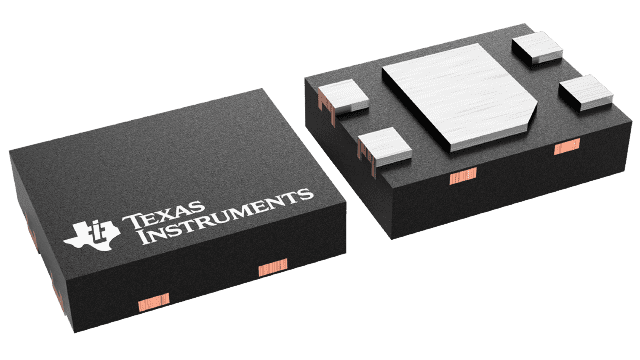

DRV5032FDDMRR


YeeHing #: Y014-DRV5032FDDMRR
Inventory: 100000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

DRV5032FDDMRR Texas Instruments - Yeehing Electronics

Low power (5 Hz, <1µA), low voltage (up to 5.5V) switch

Pricing (USD)

Quantity Unit Price
1 — 99 0.431
100 — 249 0.293
250 — 999 0.226
1,000 + 0.12

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Board Mount Hall Effect / Magnetic Sensors
RoHS Y
Type Dual-Unipolar
Operating Supply Current 2.3 uA
Maximum Output Current 5 mA
Operating Point Min/Max - 4.8 mT to 4.8 mT
Release Point Min/Max (Brp) - 3 mT to 3 mT
Operating Supply Voltage 1.65 V to 5.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case X2SON-4
Packaging Reel
Output Type Push-Pull
Output Voltage 5.5 V
Product Linear Hall Effect Sensors
Series DRV5032
Termination Style SMD/SMT
Brand Texas Instruments
Product Type Hall Effect / Magnetic Sensors
Factory Pack Quantity 3000
Subcategory Sensors
Supply Voltage - Max 5.5 V
Supply Voltage - Min 1.65 V
Unit Weight 0.000056 oz

For more information, please refer to datasheet

Documents

DRV5032FDDMRR Datasheet

More Information

The DRV5032 device is an ultra-low-power digital-switch Hall effect sensor, designed for the most compact and battery-sensitive systems. The device is offered in multiple magnetic thresholds, sampling rates, output drivers, and packages to accommodate various applications.
