Texas Instruments
DRV5033AJQLPGMQ1
DRV5033AJQLPGMQ1
Regular price
$2.19 USD
Regular price
Sale price
$2.19 USD
Unit price
per
Couldn't load pickup availability
DRV5033AJQLPGMQ1 Texas Instruments - Yeehing Electronics

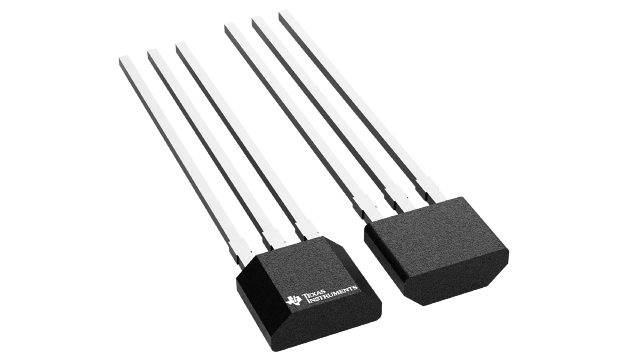

Automotive 2.7V to 38V Hall Effect Omnipolar Switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.642 |
| 100 — 249 | 0.494 |
| 250 — 999 | 0.364 |
| 1,000 + | 2.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| RoHS | Y |
| Type | Omnipolar Hall Sensor |
| Operating Supply Current | 2.7 mA |
| Maximum Output Current | 30 mA |
| Operating Point Min/Max | 3 mT to 12 mT |
| Release Point Min/Max (Brp) | 1 mT to 5 mT |
| Operating Supply Voltage | 38 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | Through Hole |
| Package / Case | TO-92-3 |
| Qualification | AEC-Q100 |
| Packaging | Ammo Pack |
| Output Type | Open Drain |
| Output Voltage | 38 V |
| Series | DRV5033-Q1 |
| Brand | Texas Instruments |
| Product Type | Hall Effect / Magnetic Sensors |
| Factory Pack Quantity | 3000 |
| Subcategory | Sensors |
| Supply Voltage - Max | 38 V |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 0.001305 oz |
For more information, please refer to datasheet
Documents
| DRV5033AJQLPGMQ1 Datasheet |
More Information
The DRV5033-Q1 device is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
