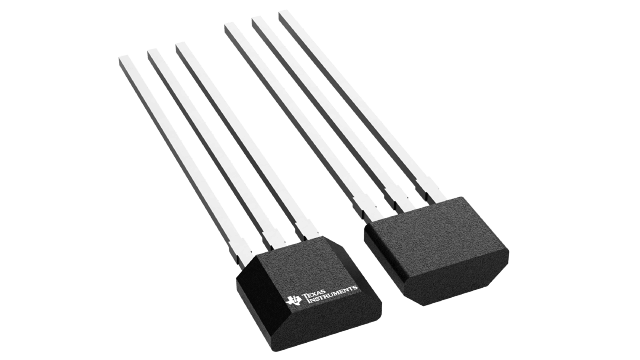

DRV5053OAQLPGMQ1 Texas Instruments - Yeehing Electronics

Automotive, high voltage (up to 38V), linear hall effect sensor

Pricing (USD)

Quantity	Unit Price
1 — 99	0.741
100 — 249	0.57
250 — 999	0.42
1,000 +	0.21

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Board Mount Hall Effect / Magnetic Sensors
RoHS	Y
Type	Linear Hall Effect Sensor
Operating Supply Current	2.7 mA
Maximum Output Current	2.3 mA
Operating Point Min/Max	-
Release Point Min/Max (Brp)	-
Operating Supply Voltage	38 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 150 C
Mounting Style	Through Hole
Package / Case	TO-92-3
Qualification	AEC-Q100
Packaging	Ammo Pack
Output Type	Analog
Output Voltage	2 V
Sensitivity	45 mV/mT
Series	DRV5053-Q1
Brand	Texas Instruments
Product Type	Hall Effect / Magnetic Sensors
Factory Pack Quantity	3000
Subcategory	Sensors
Supply Voltage - Max	38 V
Supply Voltage - Min	2.7 V
Unit Weight	0.001305 oz

For more information, please refer to datasheet

Documents

DRV5053OAQLPGMQ1 Datasheet

More Information

The DRV5053-Q1 device is a chopper-stabilized Hall IC that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
