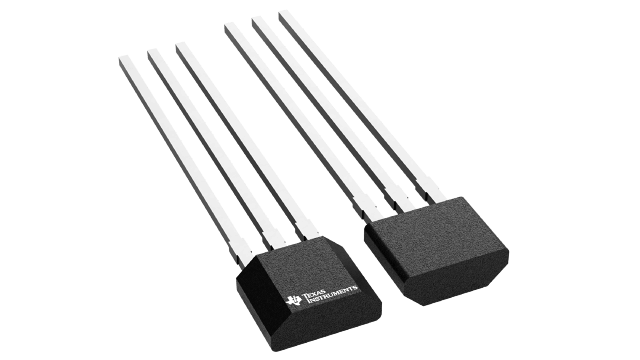

Texas Instruments
DRV5053PAQLPGMQ1
DRV5053PAQLPGMQ1
Regular price
$0.21 USD
Regular price
Sale price
$0.21 USD
Unit price
per
Couldn't load pickup availability
DRV5053PAQLPGMQ1 Texas Instruments - Yeehing Electronics
Automotive, high voltage (up to 38V), linear hall effect sensor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.741 |
| 100 — 249 | 0.57 |
| 250 — 999 | 0.42 |
| 1,000 + | 0.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| RoHS | Y |
| Type | Linear Hall Effect Sensor |
| Operating Supply Current | 2.7 mA |
| Maximum Output Current | 2.3 mA |
| Operating Point Min/Max | - |
| Release Point Min/Max (Brp) | - |
| Operating Supply Voltage | 38 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | Through Hole |
| Package / Case | TO-92-3 |
| Qualification | AEC-Q100 |
| Packaging | Ammo Pack |
| Output Type | Analog |
| Output Voltage | 2 V |
| Sensitivity | 45 mV/mT |
| Series | DRV5053-Q1 |
| Brand | Texas Instruments |
| Product Type | Hall Effect / Magnetic Sensors |
| Factory Pack Quantity | 3000 |
| Subcategory | Sensors |
| Supply Voltage - Max | 38 V |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 0.001305 oz |
For more information, please refer to datasheet
Documents
| DRV5053PAQLPGMQ1 Datasheet |
More Information
The DRV5053-Q1 device is a chopper-stabilized Hall IC that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
