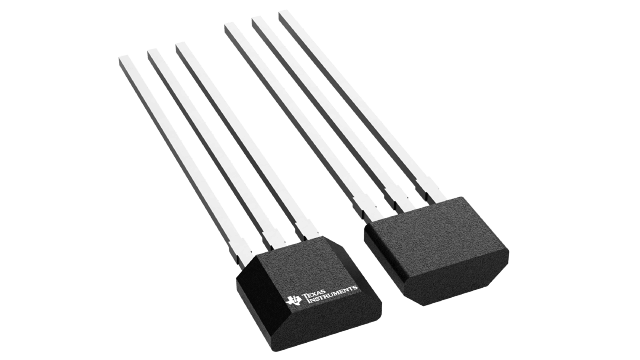

DRV5055A1QLPG Texas Instruments - Yeehing Electronics

Ratiometric linear hall effect sensor with analog output

Pricing (USD)

Quantity	Unit Price
1 — 99	1.062
100 — 249	0.877
250 — 999	0.63
1,000 +	0.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Board Mount Hall Effect / Magnetic Sensors
RoHS	Y
Type	Ratiometric Linear Hall Effect Sensor
Operating Supply Current	6 mA
Maximum Output Current	1 mA
Operating Supply Voltage	3.3 V, 5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	Through Hole
Package / Case	TO-92-3
Packaging	Bulk
Output Voltage	0 V to 5.5 V
Product	Linear Hall Effect Sensors
Sensitivity	100 mV/mT
Series	DRV5055
Brand	Texas Instruments
Product Type	Hall Effect / Magnetic Sensors
Factory Pack Quantity	1000
Subcategory	Sensors
Supply Voltage - Max	5.5 V
Supply Voltage - Min	3 V
Unit Weight	0.001305 oz

For more information, please refer to datasheet

Documents

DRV5055A1QLPG Datasheet

More Information

The DRV5055 is a linear Hall effect sensor that responds proportionally to magnetic flux density. The device can be used for accurate position sensing in a wide range of applications.
