Texas Instruments
DRV592VFP
DRV592VFP
Regular price
$1.97 USD
Regular price
Sale price
$1.97 USD
Unit price
per
Couldn't load pickup availability

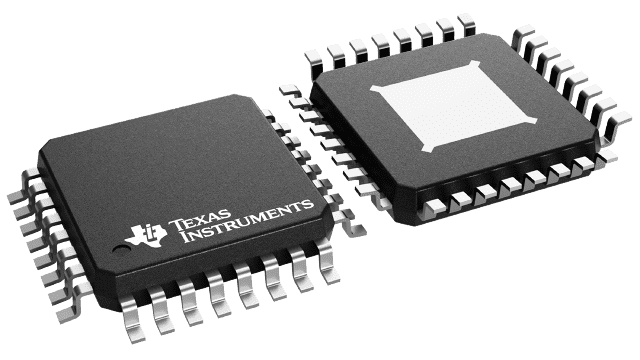

DRV592VFP Texas Instruments - Yeehing Electronics
High-Efficiency H-Bridge (Requires External PWM)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.167 |
| 100 — 249 | 4.212 |
| 250 — 999 | 3.311 |
| 1,000 + | 1.97 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | Half-Bridge Drivers |
| Type | Non-Inverting |
| Mounting Style | SMD/SMT |
| Package / Case | HLQFP-32 |
| Number of Drivers | 2 Driver |
| Output Current | 3 A |
| Supply Voltage - Min | 2.8 V |
| Supply Voltage - Max | 5.5 V |
| Operating Supply Current | 1 mA |
| Pd - Power Dissipation | 4.1 W |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | DRV592 |
| Packaging | Tray |
| Operating Temperature Range | - 40 C to + 85 C |
| Technology | Si |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.8 V to 5.5 V |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.006300 oz |
For more information, please refer to datasheet
Documents
| DRV592VFP Datasheet |
More Information
The DRV592 is a high-efficiency, high-current H-bridge ideal for driving a wide variety of thermoelectric cooler elements in systems powered from 2.8 V to 5.5 V. Low output stage on-resistance significantly decreases power dissipation in the amplifier.
