Texas Instruments
DRV594VFP
DRV594VFP
Regular price
$10.64 USD
Regular price
Sale price
$10.64 USD
Unit price
per
Couldn't load pickup availability

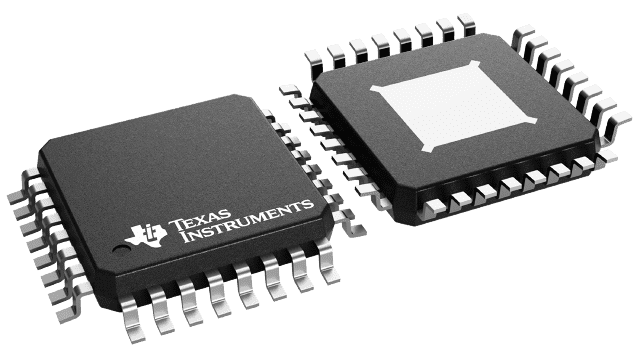

DRV594VFP Texas Instruments - Yeehing Electronics
+/-3 A High-Efficiency PWM Power Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 23.256 |
| 100 — 249 | 20.672 |
| 250 — 999 | 16.994 |
| 1,000 + | 10.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HLQFP-32 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | DRV594 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Technology | Si |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.006300 oz |
For more information, please refer to datasheet
Documents
| DRV594VFP Datasheet |
More Information
The DRV593 and DRV594 are high-efficiency, high-current power amplifiers ideal for driving a wide variety of thermoelectric cooler elements in systems powered from 2.8 V to 5.5 V. The operation of the device requires only one inductor and capacitor for the output filter, saving significant printed-circuit board area. Pulse-width modulation (PWM) operation and low output stage on-resistance significantly decrease power dissipation in the amplifier.
