Texas Instruments

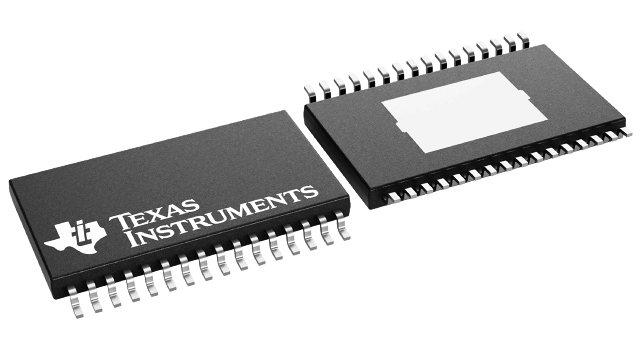

DRV595DAPR
DRV595DAPR
Regular price
$11.23 USD
Regular price
Sale price
$11.23 USD
Unit price
per
Couldn't load pickup availability
DRV595DAPR Texas Instruments - Yeehing Electronics
15V/±4A High-Efficiency PWM Power Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 24.538 |
| 100 — 249 | 21.812 |
| 250 — 999 | 17.93 |
| 1,000 + | 11.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Type | Current Controller |
| Operating Supply Voltage | 4.5 V to 26 V |
| Output Current | 3 A |
| Operating Supply Current | 65 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-32 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Voltage | 11.85 V |
| Series | DRV595 |
| Brand | Texas Instruments |
| Development Kit | DRV595EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance | 60 mOhms |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.006388 oz |
For more information, please refer to datasheet
Documents
| DRV595DAPR Datasheet |
More Information
The DRV595 is a high-efficiency, high-current power driver ideal for driving a wide variety of loads in systems powered from 4.5V to 26V. PWM operation and low output stage on-resistance significantly decrease power dissipation in the amplifier.
