Description

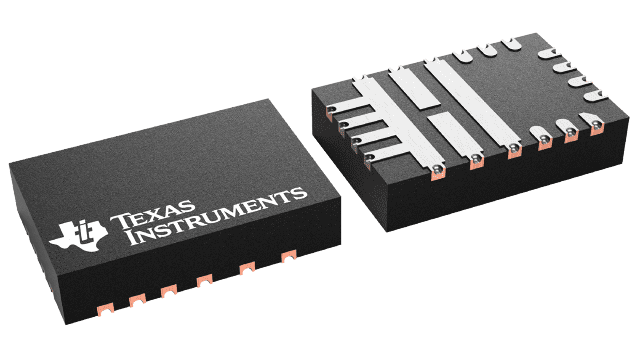

DRV8243HQRXYRQ1 Texas Instruments - Yeehing Electronics
Automotive 40-V, 12-A H-bridge driver with integrated current sensing and feedback
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.182 |
| 100 — 249 | 2.788 |
| 250 — 999 | 1.955 |
| 1,000 + | 1.26 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DRV8243HQRXYRQ1 Datasheet |
More Information
The DRV824x-Q1 family of devices is a fully integrated H-bridge driver intended for a wide range of automotive applications. The device can be configured as a single full-bridge driver or as two independent half-bridge drivers. Designed in a BiCMOS high power process technology node, this monolithic family of devices in a power package offer excellent power handling and thermal capability while providing compact package size, ease of layout, EMI control, accurate current sense, robustness, and diagnostic capability. This family provides an identical pin function with scalable RON (current capability) to support different loads.
