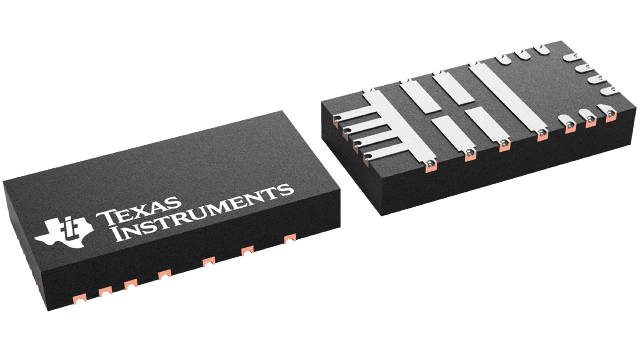

DRV8244SQRYJRQ1 Texas Instruments - Yeehing Electronics

Automotive 40-V, 21-A H-Bridge driver with integrated current sensing and feedback

Pricing (USD)

Quantity	Unit Price
1 — 99	4.228
100 — 249	3.447
250 — 999	2.709
1,000 +	1.61

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DRV8244SQRYJRQ1 Datasheet

More Information

The DRV824x-Q1 family of devices is a fully integrated H-bridge driver intended for a wide range of automotive applications. The device can be configured as a single full-bridge driver or as two independent half-bridge drivers. Designed in a BiCMOS high power process technology node, this monolithic family of devices in a power package offer excellent power handling and thermal capability while providing compact package size, ease of layout, EMI control, accurate current sense, robustness, and diagnostic capability. This family provides an identical pin function with scalable RON (current capability) to support different loads.
