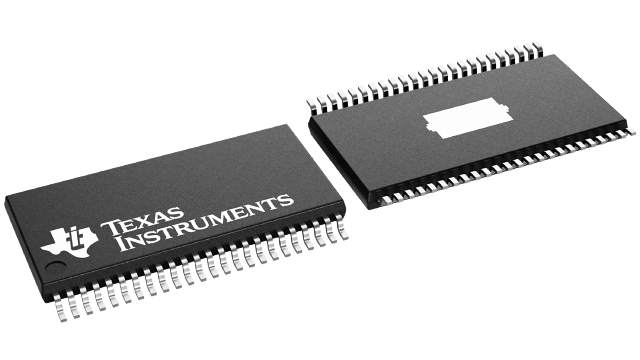

DRV8303DCA Texas Instruments - Yeehing Electronics
65-V max 3-phase gate driver with current shunt amplifiers & SPI
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.59 |
| 100 — 249 | 2.927 |
| 250 — 999 | 2.3 |
| 1,000 + | 1.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Operating Supply Voltage | 6 V to 60 V |
| Output Current | 1.7 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-48 |
| Packaging | Reel |
| Features | Current Sense Amplifier, SPI/I2C |
| Number of Outputs | 2 Output |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | DRV8303 |
| Brand | Texas Instruments |
| Development Kit | DRV8303EVM |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.007422 oz |
For more information, please refer to datasheet
Documents
| DRV8303DCA Datasheet |
More Information
The DRV8303 is a gate driver IC for three-phase motor-drive applications. The device provides three half bridge drivers, each capable of driving two N-channel MOSFETs. The device supports up to 1.7-A source and 2.3-A peak current capability. The DRV8303 can operate off of a single power supply with a wide range from 6-V to 60-V. It uses a bootstrap gate-driver architecture with trickle charge circuitry to support 100% duty cycle. The DRV8303 uses automatic hand shaking when the high-side or low-side MOSFET is switching to prevent current shoot through. Integrated VDS sensing of the high-side and low-side MOSFETs is used to protect the external power stage against overcurrent conditions.
