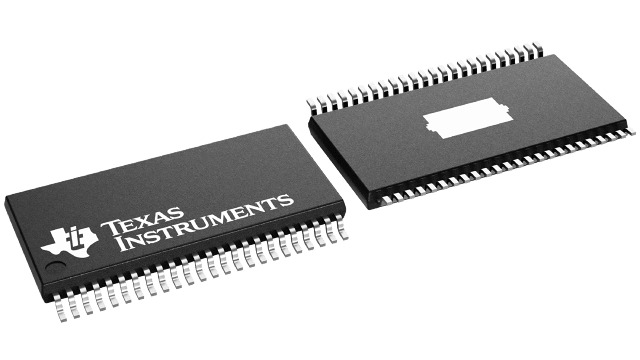

DRV8303DCAR Texas Instruments - Yeehing Electronics

65-V max 3-phase gate driver with current shunt amplifiers & SPI

Pricing (USD)

Quantity	Unit Price
1 — 99	3.285
100 — 249	2.878
250 — 999	2.018
1,000 +	1.14

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Operating Supply Voltage	6 V to 60 V
Output Current	1.7 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-48
Packaging	Reel
Features	Current Sense Amplifier, SPI/I2C
Number of Outputs	2 Output
Operating Temperature Range	- 40 C to + 125 C
Series	DRV8303
Brand	Texas Instruments
Development Kit	DRV8303EVM
Moisture Sensitive	Yes
Product Type	Motor / Motion / Ignition Controllers & Drivers
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.007422 oz

For more information, please refer to datasheet

Documents

DRV8303DCAR Datasheet

More Information

The DRV8303 is a gate driver IC for three-phase motor-drive applications. The device provides three half bridge drivers, each capable of driving two N-channel MOSFETs. The device supports up to 1.7-A source and 2.3-A peak current capability. The DRV8303 can operate off of a single power supply with a wide range from 6-V to 60-V. It uses a bootstrap gate-driver architecture with trickle charge circuitry to support 100% duty cycle. The DRV8303 uses automatic hand shaking when the high-side or low-side MOSFET is switching to prevent current shoot through. Integrated VDS sensing of the high-side and low-side MOSFETs is used to protect the external power stage against overcurrent conditions.
