Texas Instruments
DRV83053QPHPRQ1
DRV83053QPHPRQ1
Regular price
$2.33 USD
Regular price
Sale price
$2.33 USD
Unit price
per
Couldn't load pickup availability
DRV83053QPHPRQ1 Texas Instruments - Yeehing Electronics
Automotive 12-V battery 3-phase smart gate driver (grade 0 & grade 1)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.67 |
| 100 — 249 | 3.74 |
| 250 — 999 | 2.87 |
| 1,000 + | 2.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | SMD/SMT |

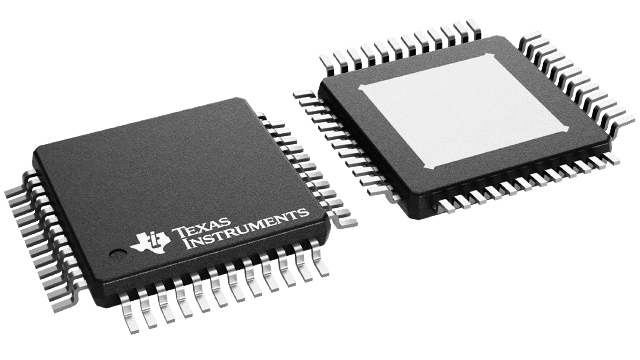

| Package / Case | HTQFP-48 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | LDO, Current Sense Amplifier, SPI/I2C, Watchdog Timer, Smart Gate Drive |
| Operating Temperature Range | - 40 C to + 150 C |
| Series | DRV8305-Q1 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| DRV83053QPHPRQ1 Datasheet |
More Information
The DRV8305-Q1 device is a gate driver IC for three-phase motor-drive applications. The device provides three high-accuracy half-bridge drivers, each capable of driving a high-side and low-side N-channel MOSFET. A charge pump driver supports 100% duty cycle and low-voltage operation for cold crank situations. The device can tolerate load dump voltages up to 45-V.
