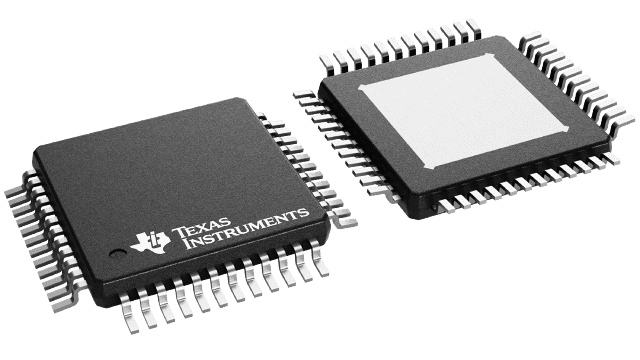

DRV83055PHPR Texas Instruments - Yeehing Electronics

45-V max 3-phase smart gate driver with current shunt amplifiers & SPI

Pricing (USD)

Quantity	Unit Price
1 — 99	3.739
100 — 249	3.048
250 — 999	2.396
1,000 +	1.42

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Y
Product	Brushless DC Motor Controllers
Type	3 Phase
Operating Supply Voltage	4.4 V to 45 V
Output Current	1 A
Operating Supply Current	15 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	HTQFP-48
Packaging	Reel
Features	LDO, Current Sense Amplifier, SPI/I2C, Watchdog Timer, Smart Gate Drive
Number of Outputs	3 Output
Operating Frequency	200 kHz
Operating Temperature Range	- 40 C to + 125 C
Series	DRV8305
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Motor / Motion / Ignition Controllers & Drivers
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.008864 oz

For more information, please refer to datasheet

Documents

DRV83055PHPR Datasheet

More Information

The DRV8305 device is a gate driver IC for three-phase motor-drive applications. The device provides three high-accuracy and temperature compensated half-bridge drivers, each capable of driving a high-side and low-side N-channel MOSFET. A charge pump driver supports 100% duty cycle and low-voltage operation. The device can tolerate load dump voltages up to 45-V.
