Texas Instruments

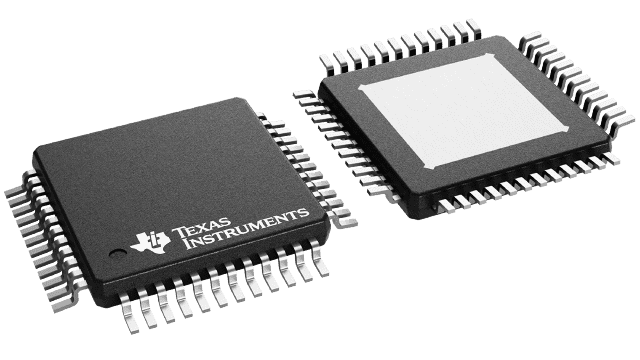

DRV8305NPHPR
DRV8305NPHPR
Regular price
$1.22 USD
Regular price
Sale price
$1.22 USD
Unit price
per
Couldn't load pickup availability
DRV8305NPHPR Texas Instruments - Yeehing Electronics
45-V max 3-phase smart gate driver with current shunt amplifiers & SPI
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.207 |
| 100 — 249 | 2.615 |
| 250 — 999 | 2.055 |
| 1,000 + | 1.22 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DRV8305NPHPR Datasheet |
More Information
The DRV8305 device is a gate driver IC for three-phase motor-drive applications. The device provides three high-accuracy and temperature compensated half-bridge drivers, each capable of driving a high-side and low-side N-channel MOSFET. A charge pump driver supports 100% duty cycle and low-voltage operation. The device can tolerate load dump voltages up to 45-V.
